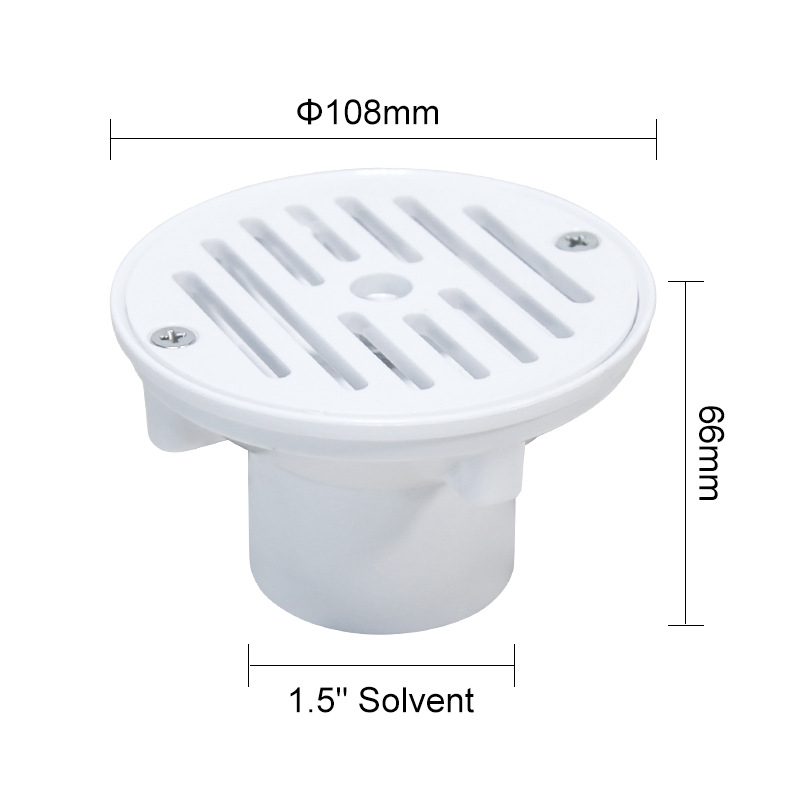

The floor inlet (Water Return SV-1424) is made of high quality ABS material, this is the plug type model SV-1424, with 1.5’’/2’’/3’’/4’’ for options.
Read MoreColor: White Color
Material: ABS
Connection Size: 1.5"Solvent (metric/imperial); 2"Solvent (metric/imperial);
3’’ Solvent (metric/imperial); 4’’Solvent (metric/imperial)
Piece per carton: 100 pieces per carton
Pool Fittings Water Return SV-1424
The pool fittings floor inlet (Water Return SV-1424) is made of high quality ABS material,with superior corrosion resistance and toughness, reliable quality, long service life. It is the plug type model , with 1.5 inch ,2 inch ,3 inch and 4inch size for options. Can be customized according to customer needs color, logo and brand name.
Designed to actively enhance your pool's functionality，crafted with durability in mind, this innovative solution ensures efficient water circulation and prevents backflow
Ensure the spa systemis pre-plumbed on its skid with all connections ready.
Attach the existing pool & spa water return discharge line (the line carrying filtered water back to the pool & spa) to the corresponding return outlet on the new system using the provided 1.5"/2" plumbing connections.
Attach the existing spa's suction line (the line pulling water from the pool & spa to the pump) to the corresponding suction inlet on the new system.
Ensure all connections are tight. Before powering on, fill the spa with water to the proper level above the intake. Turn on the pump and check for leaks at the connections. Always disconnect power before making connections.
We could provide OEM,ODM for all pool accessoires.
1.Swimming Skimmer,wide mounth and standard mouth, connection size: 1.5inch ( have vinyl pool type or concrete pool used).
2.wall inlet, size 1.5inch or 2 inch .(Imperial or metric available)!
3,Pool & spa water return/Suction nozzle,size 1.5inch or 2 inch .(Imperial or metric available)!
4,Main drain,square type or round type,vinyl liner use type available!
5,Air jet ,massage nozzle jet. conneciton pipe:1.5inch
7,Union ,valve,wall pipe
8,Pool grating,flexiable .three hole ,wave type ,18cm,20cm 25cm ,30cm.
Youtube Video：Pool & Spa Water Return SV-1424
Other Models：Swimming Pool Fittings
Color: White Color
Material: ABS material
Connection Size: 1.5inch Solvent (metric/imperial); 2 inch Solvent (metric/imperial);
3 inch Solvent (metric/imperial); 4 inch Solvent (metric/imperial)
Piece per carton: 100 pieces per carton
| Model | Connection | Description | Flow Rate (L/min) |
| SV-1424(A1) | 1.5"Solvent | Wall Return(Metric) | 150 |
| SV-1424(A2) | 2" Solvent | Wall Return(Metric) | 240 |
| SV-1424(E1) | 1.5"Solvent | Wall Return(Imperial) | 150 |
| SV-1424(E2) | 2" Solvent | Wall Return(Imperial) | 240 |
| D | |||
| 1½" | 2" | ||
| Metric | ∅50 | Metric | ∅63 |
| Imperial | ∅48 | Imperial | ∅60 |
